Type	Straight Tee		Reducing Tee
	weld	seamless	weld	seamless
Nominal Diameter	DN250～DN1600	DN15～DN500	DN250～DN1600	DN15～DN500
Wall Thickness	20-50mm

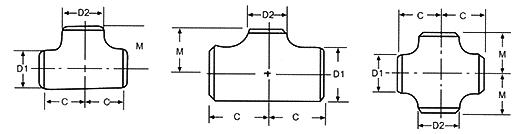

Tee（Straight and Reducing Outlet Tees）

Nominal Pipe Size		Outside Diameter	Center to End
Mm	In	D1×D2	C	M
20×20	3/4×3/4	25×25 26.7×26.7	29	29
20×15	3/4×1/2	25×20 26.7×21.3	29	29
25×25	1×1	32×32 33.4×33.4	38	38
25×20	1×3/4	32×25 33.4×26.7	38	38
32×32	1.1/4×1.14	38×38 42.2×42.2	48	48
32×25	1.1/4×1	38×32 42.2×33.4	48	48
40×40	1.1/2×1.1/2	45×45 48.3×48.3	57	57
40×25	1.1/2×1	45×32 48.3×33.4	57	57
50×50	2×2	57×57 60.3×60.3	64	64
50×25	2×1	57×32 60.3×33.4	64	51
65×65	2.1/2×2.1/2	76×76 73×73	76	76
65×40	2.1/2×1.1/2	76×45 73.0×48.3	76	67
80×80	3×3	89×89	86	86
80×50	3×2	89×57 88.9×60.3	86	76
100×100	4×4	108×108 114.3×114.3	105	105
100×50	4×2	108×57 114.3×60.3	105	89
125×125	5×5	133×133 141.3×141.3	124	124
125×80	5×3	133×89 141.3×88.9	124	111
150×150	6×6	159×159 168.3×168.3	143	143
150×100	6×4	159×108 168.3×114.3	143	130
200×200	8×8	219×219	178	178
200×100	8×4	219×108 219.1×114.3	178	156
250×250	10×10	273×273	216	216
250×125	10×5	273×133 273.1×141.3	216	191
300×300	12×12	325×325 323.9×323.9	254	254
300×200	12×8	325×219 323.9×219.1	254	229
